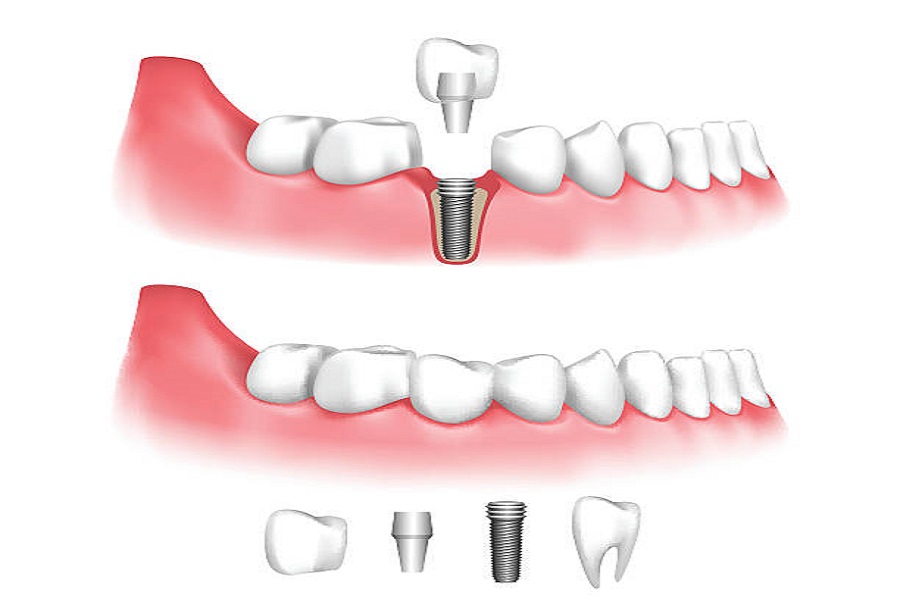

The Branemark osseointegrated implant consists of the following seven components:
Fixtures are fixation devices implanted in the jawbone, made of pure titanium. The diameter is 3.6mm, 3.75mm, 4.0mm and other specifications. In the same series, the lengths are 10mm, 13mm, 15mm, 18mm, 20mm and other specifications. There is a raised hexagonal structure at the top for the mechanical retention of special instruments when screwing into the implant, and there is an internal thread hole in the center to the root end. Connected side holes. cover screw
It is a temporary device, made of pure titanium, used to cover the internal screw hole and upper opening of the retaining pin to prevent the ingrowth of bone and soft tissue.
Abutment (abutment)
It is cylindrical, made of pure titanium, the root end is embedded with the hexagonal raised at the top of the retaining nail, and the center is penetrated for the center screw to pass through. The height of the abutment is 4.0mm, 5.5mm, 7.0mm and other specifications, which can be selected according to the thickness of the gingiva.
Center screw (center screw)
Made of pure titanium, it is a screw device used to connect the abutment and the retaining nails, which is matched with abutments of different specifications and heights. Its top has a raised hexagonal structure for special instruments to be in place when screwed in, and an internal thread hole is opened in the center to the root end for the bridge post screw to be in place to fix the implant denture.
Healing cap (healing)
Temporary device, made of pure titanium. It is used to cover the inner screw hole of the central screw and protect the gingival tissue around the abutment during the second-stage operation.
bridge pillar (gold cylinder)
Made of white gold and gold alloy. It is a hollow cylindrical device that forms a device for connecting the denture bridge and the abutment in place.
Bridge screw (gold screw)
Made of gold alloy. The screw device for fixing the denture to the inner screw hole of the central screw through the hollow of the bridge. The implant denture is about to be fixed on the abutment.
